Precision Electrical & Air has effectively executed an extensive air conditioning installation project featuring two distinct systems at a residential property located in Tarragindi. This project involved the provision and installation of a Daikin ducted air conditioning system for the upper floor, alongside a Daikin high-wall split system situated in the living room on the lower floor.
Expert Air Conditioning Installation: Daikin FDYAN160AV1 16.0kW Ducted System

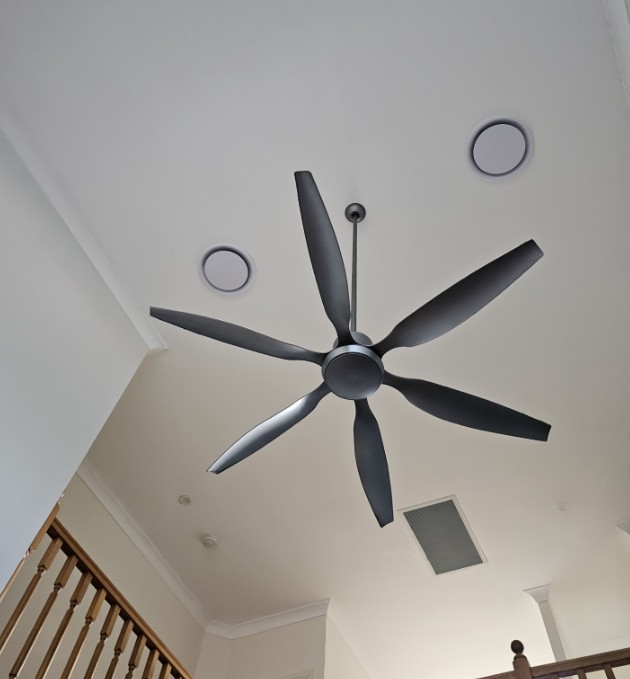

The skilled team at Precision Electrical & Air seamlessly handled the installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically placed within the ceiling space above the void, while the condenser was securely mounted on the front balcony wall using rubber feet to minimize vibrations. The connection between the indoor and outdoor units was efficiently concealed within ducting as it exited the ceiling space.

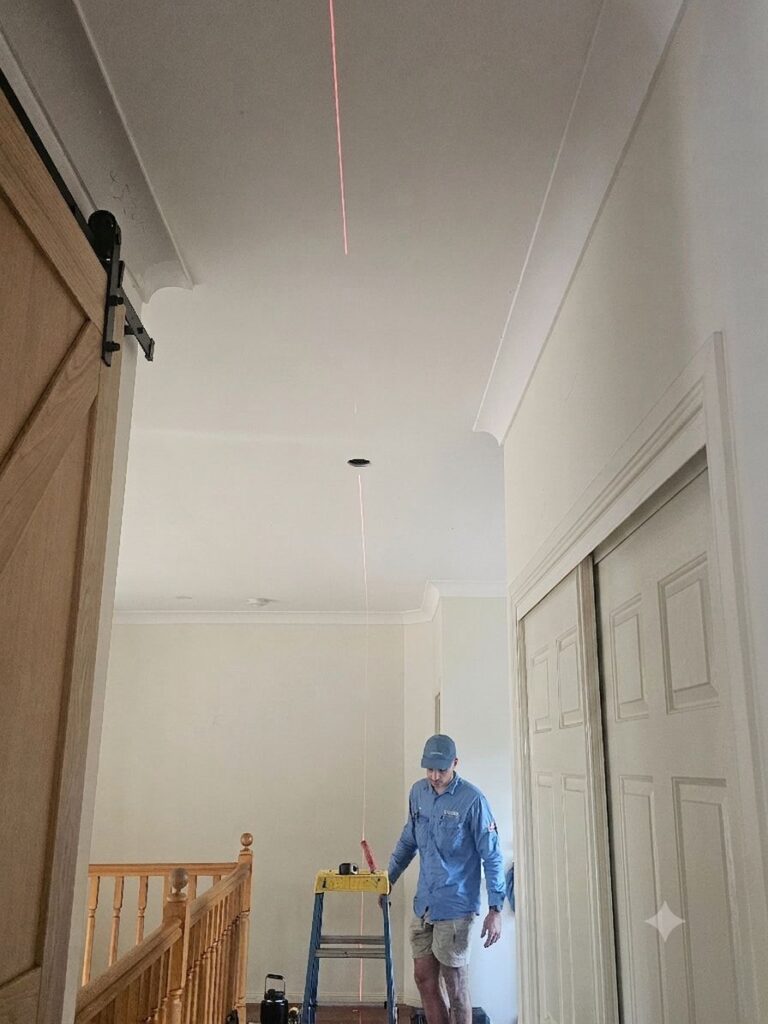

To facilitate effective drainage, two drainage systems were installed to channel water from the indoor unit and its safety tray to the external gutter. A comprehensive network of ducting, branch take-offs, zone motors, and air plenums was meticulously arranged throughout the ceiling space, all directing airflow back to the indoor unit. A return air grille was thoughtfully positioned in the upstairs hallway to enhance air circulation and system efficiency.
A dedicated electrical sub-circuit was constructed for this system, extending from the switchboard to the outdoor unit, featuring an NHP isolation switch located adjacent to the condenser. a MyZone Multipoint touchpad zone controller was installed in the upstairs hallway, providing enhanced control over the air conditioning system and its various zones.
High-Wall Split System Installation: Daikin FTXV80W 8.0kW

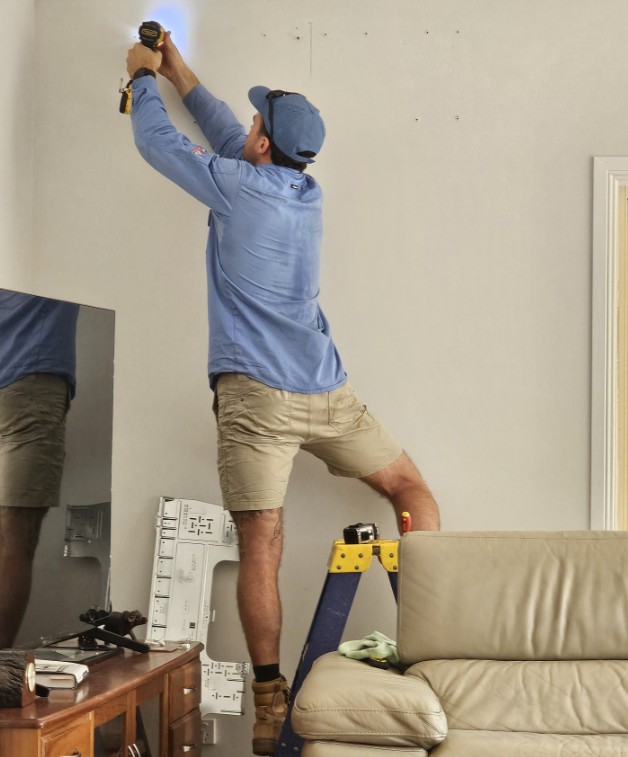

In the downstairs living area, the installation of the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was executed with precision. This installation required the addition of new ducting, interconnect cables, and a copper pair coil to connect the indoor and outdoor units, with the condenser mounted on rubber feet to further reduce vibrations.
A dedicated electrical circuit was created from the switchboard to the condenser, incorporating an NHP isolation switch to enhance safety measures. To effectively manage condensation, an Aspen Silent+ Mini condensation pump was placed beneath the indoor unit and connected to the nearest stormwater downpipe. The entire system underwent a thorough commissioning process to ensure optimal performance.
Comprehensive Review of Installation Results
This installation has effectively equipped the property with efficient zoned ducted heating and cooling for the upper level, complemented by a dedicated high-wall split system for the living area downstairs. Both Daikin systems were installed following the manufacturer's specifications, ensuring that all electrical circuits and drainage systems were accurately configured and fully operational.
For expert installation of ducted or split system air conditioning in Tarragindi and the neighboring suburbs of Brisbane Southside, contact Precision Electrical & Air at 0423 163 359.
