Dedicated Circuits For Workshop Power Solutions For Heavy Tools

If you own a shed on rural property and are thinking about converting it into a fully functional workshop, it is essential to prioritize the electrical setup. Using a MIG welder, air compressor, and table saw on the same circuit as your home can result in major complications. These complications may include frequent tripped breakers, flickering lights, and dangerous overload situations that can jeopardize both safety and operational efficiency.

This detailed guide delves into the critical aspects of wiring a dependable workshop in the Mid North Coast. We will cover the necessity of dedicated circuits, the use of sub-boards, and the advantages of three-phase power for larger machinery. If your requirements are limited to basic electrical needs—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a more suitable starting point. This article focuses on workshops that demand substantial power for intensive tasks.

Why Dedicated Circuits Are Crucial for Your Workshop's Electrical Needs

Many homes use multiple power points on shared circuits, which usually suffices for low-power appliances like kettles and televisions. issues arise when attempting to operate a 32-amp MIG welder alongside an Air compressor. If not properly managed, this setup can lead to serious electrical problems.

Consider the potential repercussions of connecting heavy machinery to standard household circuits:

• Frequent tripped breakers — A welder that draws over 30 amps on a 20-amp circuit will trip the breaker instantly or, even worse, may cause the wiring to overheat before the breaker reacts.
• Voltage drops — Extended cable runs from the main panel to the shed can lead to voltage sag. This phenomenon can cause your tools to operate at elevated temperatures, slow down, and wear out more quickly.
• Power disruptions in the home — When the compressor kicks on, it may cause your partner to experience a power outage in the kitchen. This situation often results in awkward conversations.
• Heightened fire hazards — Overloaded wiring within walls and along cable runs is a leading cause of electrical fires in rural regions.

Implementing dedicated circuits can effectively mitigate these issues. Each heavy tool should have its own dedicated circuit, appropriately sized for its load, accompanied by individual breaker protection. This setup ensures that nothing is shared, thereby preventing overloads.

Evaluate the Electrical Needs of Common Workshop Tools

Before your electrician can create an effective circuit design, it’s crucial to understand the power requirements of your tools. Below is a breakdown of the typical power consumption for common workshop equipment:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders generally operate at the higher end of this range. Three-phase models will have different power requirements (further details will follow).
• Air compressor — Consumes around 10A to 15A. The startup surge can be significant—compressor motors often draw three to four times their running current for a few seconds upon startup.
• Table saw — Typically uses between 10A and 15A for a quality cabinet saw. Less expensive contractor models may consume less power, but you're likely seeking a more durable option.
• Lathe (wood or metal) — Similar to table saws, these usually require between 10A and 15A, with metal lathes often at the higher end of the spectrum.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while other tools are in use, meaning it should have its own circuit.
• Plasma cutter — Draws between 20A and 30A, comparable to a welder, necessitating a dedicated circuit.

When you sum the power draw, it becomes clear that a single 20-amp circuit from the house will be insufficient. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, underscoring the necessity for a comprehensive electrical plan.

Choose the Right Circuit Breaker Sizes and Implement RCD Protection

Each circuit in your workshop requires a breaker that corresponds with the cable size and expected load. Your electrician will determine this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery requiring substantial power.
• Three-phase breakers — These should be sized according to the specific equipment requirements (details provided later).

RCD protection is crucial. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This is a legal requirement aimed at safeguarding against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs quickly cut power if there is a current leak to earth, potentially distinguishing between a minor shock and a severe injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that combine both functionalities. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to the others, ensuring a more reliable electrical system.

Install a Dedicated Sub-Board to Fulfill Your Workshop's Electrical Demands

Rather than running multiple individual cables back to the main switchboard, setting up a dedicated sub-board in your workshop is a more efficient solution. Here are the benefits:

• Shorter cable runs — One heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This configuration minimizes voltage drop and reduces cable costs.
• Simplified fault diagnosis — Each circuit is clearly labeled and easily accessible within the workshop. If a breaker trips, you won’t have to return to the house to reset it, streamlining the process.
• Future expansion — A properly sized sub-board allows for adding more circuits down the road, making it straightforward to integrate new tools later.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the house's electricity, an essential safety feature.

If your house switchboard is outdated or operating at full capacity, you may need to upgrade it to support the workshop sub-board effectively. Older ceramic fuse boards likely will not safely accommodate the increased load.

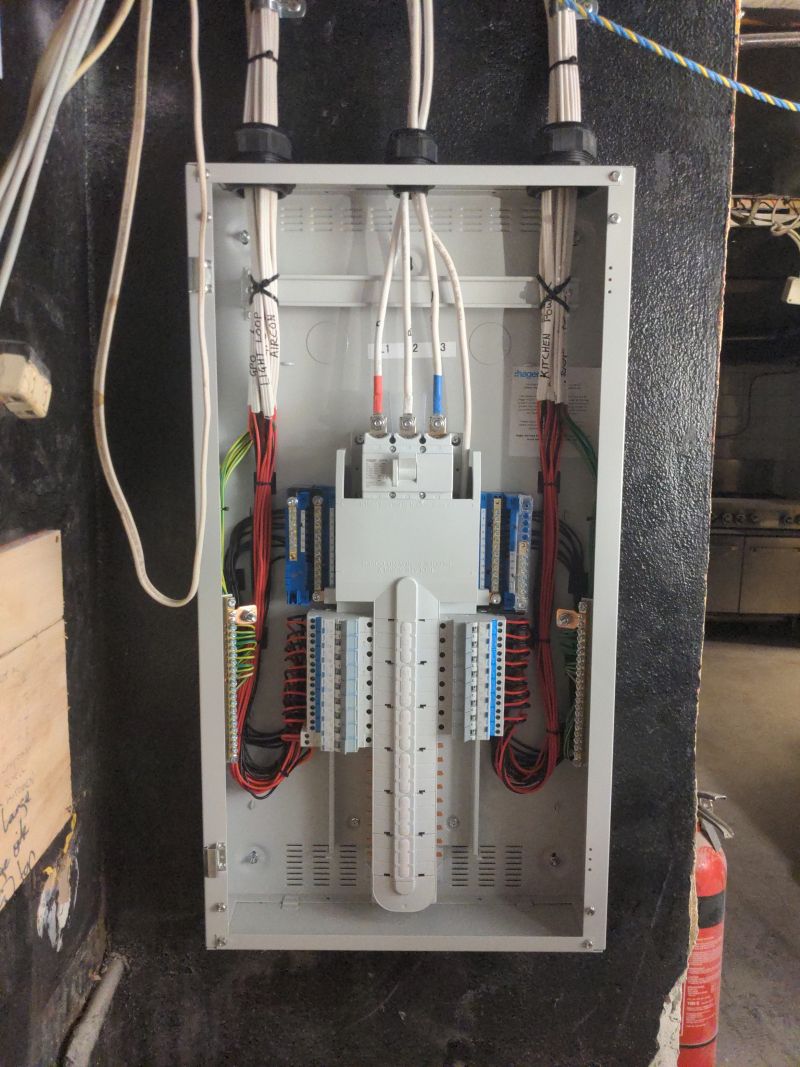

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

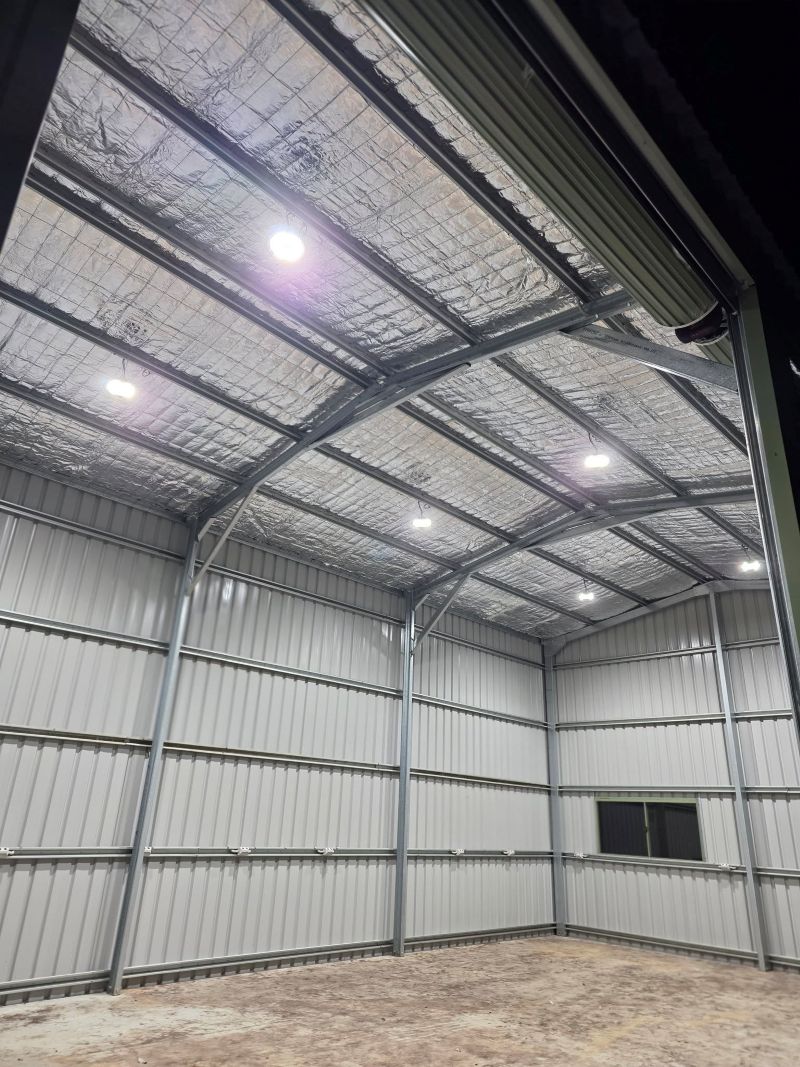

Create an Effective Lighting Plan for Your Workshop

Proper lighting is essential for safety in your workshop. You need to see your work clearly, especially when handling sharp blades and hot materials. Here are key lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, even lighting throughout the area. Aim for a minimum of 500 lux at bench height to ensure adequate visibility.
• Dust-proof fittings — Standard lights can easily become clogged with sawdust and metal shavings. Choose IP-rated fittings that are resistant to dust and moisture for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is essential for precision work, enhancing both productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit to ensure illumination if a power circuit trips. Being left in the dark next to a running table saw poses a significant safety hazard.

We have extensive experience with lighting layouts in commercial environments. Our team can help you devise a workshop lighting strategy that greatly improves your working conditions while adhering to safety regulations.

Ensure Proper Ventilation and Dust Extraction Circuits

When engaged in woodworking or welding, proper ventilation is as vital as sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits for several important reasons:

• Continuous operation — Your dust extractor must run whenever you are cutting. It should not share a circuit with the tool it serves, as this could compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience substantial startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to automatically activate when specific tools are powered on. This requires careful circuit planning and design.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure adequate airflow. If you're using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Unlock the Benefits of Three-Phase Power for Heavy Machinery

If your work involves intensive metalworking or you operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may fall short. Three-phase power offers multiple distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges that single-phase motors often experience.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring peak performance.
• Smoother operation — Three-phase motors run more smoothly and cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas on the Mid North Coast depends on its availability at the street level. Some properties may already have three-phase supply, while others may need a phase converter or a new connection from Essential Energy.
For further details, please refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will require the installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Notably, your workshop generates surges every time a large motor starts or stops. Combined with the voltage instabilities often present in rural power lines, your equipment faces significant risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they affect your tools. This is a cost-effective strategy compared to the expenses associated with replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common on the Mid North Coast—we recommend adding surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties that depend on a generator for backup power, incorporating a generator changeover switch ensures seamless transitions between mains power and generator supply, preventing back-feeding or damage to connected equipment.

Incorporate Additional Features into Your Workshop Setup

Consider these additional elements for your workshop wiring from the outset:

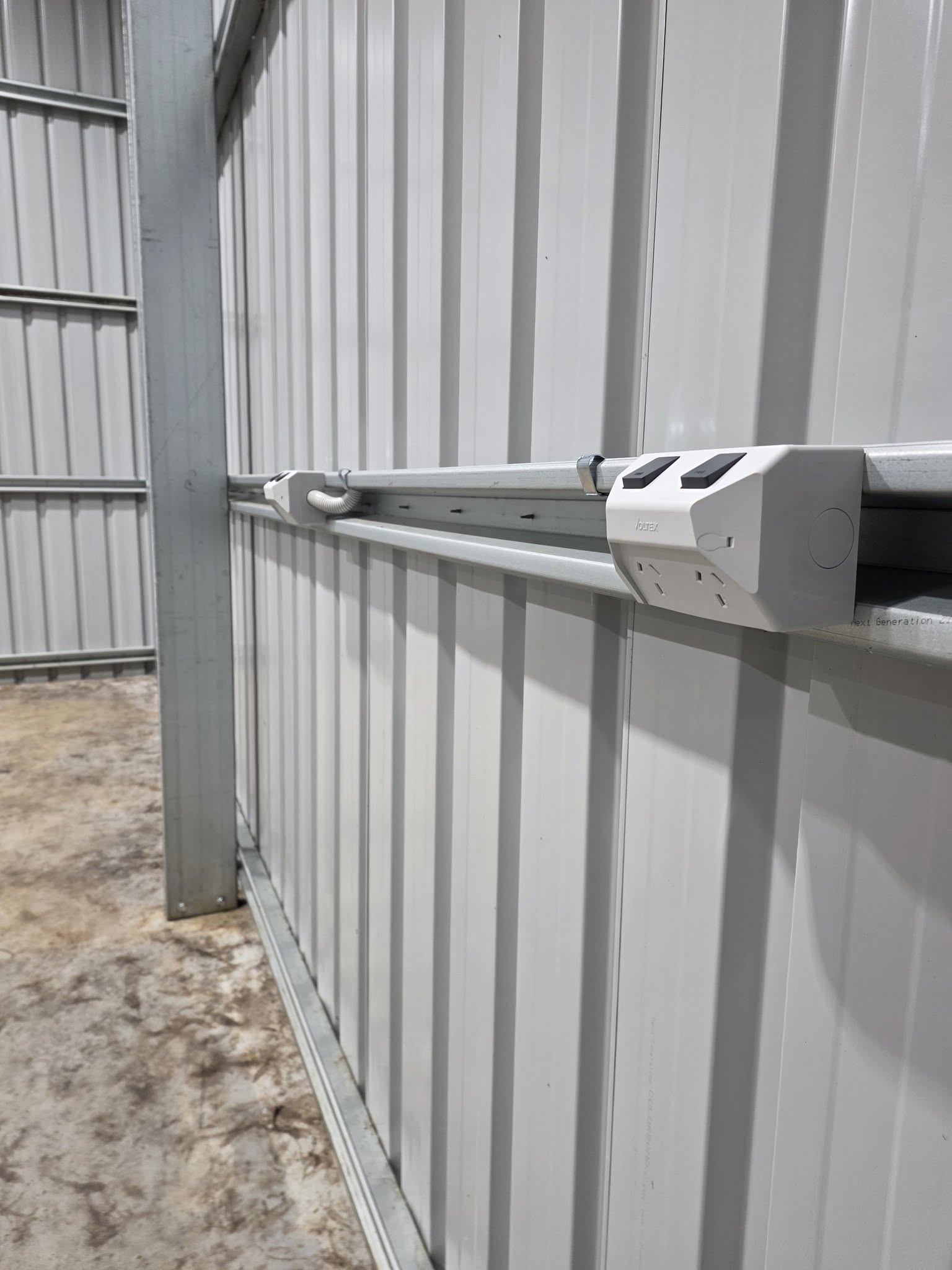

• Ample power points — Install more power points and switches than you think you will need. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every workbench and strategically position outlets near key machinery.
• Data and communications — If you need internet access for streaming music, operating CNC machines, or monitoring security cameras, plan for data and TV wiring simultaneously with the electrical setup. It is much easier to run cables during the initial installation than after the walls are finished.
• External lighting — Include floodlights outside the workshop to assist with access during early mornings and late evenings, especially in rural areas lacking sufficient street lighting.
• EV or equipment charging — If you use electric devices (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to avoid overloading general outlets.

Estimate the Costs for Your Workshop Electrical Installation

Cost estimates will vary based on the workshop size, the number of circuits needed, and whether three-phase power is required. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Comprehensive dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, extensive lighting design) — Starting from $10,000
• Three-phase workshop installation (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures are starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We provide clear quotes based on your specific workshop and equipment requirements—there are no hidden fees involved.

Critical Reminder: All Electrical Work Must Be Performed by Licensed Professionals

This is a vital point to stress. In New South Wales, all electrical wiring must be performed by a licensed electrician. This includes installing new circuits, sub-boards, power points, and connecting equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates across Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create serious safety risks, and lead to hefty fines. If someone offers to perform the work cheaply without a license, it is not a savings—it is a danger that could have severe repercussions.

Find Solutions to Your Frequently Asked Questions

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to about 140A output) can indeed be used with a standard 10A or 15A power point. any larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. For frequent welding, it is essential to have a dedicated 32A circuit installed for optimal safety and efficiency.

What Is the Typical Number of Circuits Needed in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally needs a minimum of 8 to 12 circuits. This encompasses dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future growth. We customize the design based on your specific equipment list to maximize functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops operate effectively on single-phase power with dedicated circuits. Three-phase power is only essential if you are utilizing commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our complete guide on Do I Need Three-Phase Power on My Property? to see if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it is an outdated ceramic fuse board or fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Timeline for a Workshop Electrical Installation?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out that includes multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline with your quote to keep you informed throughout the entire process.
