Restoring Quarry Tile Floors To Enhance Breathability And Brightness

How do quarry tiles differ from other flooring materials?

Exploring the Importance of Clay Composition

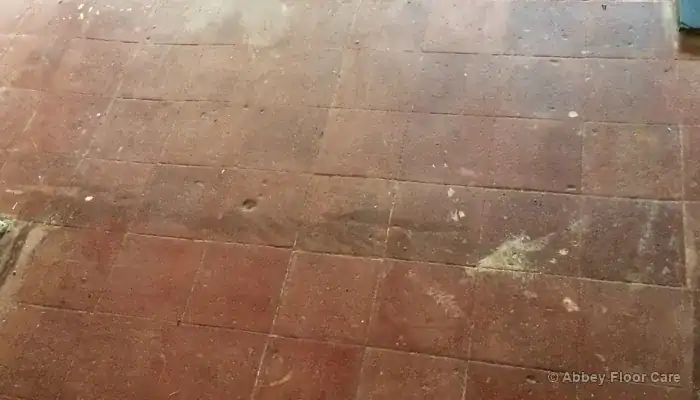

Quarry tiles consist of dense, unglazed clay that undergoes high-temperature firing, resulting in a robust moisture-active surface without any protective glaze. Unlike ceramic or porcelain tiles, quarry tiles do not have a sealing glaze, making the clay body susceptible to foot traffic, cleaning agents, and moisture from the very start. The ongoing cycle of moisture absorption and release is a crucial element of their design.

The clay structure is composed of fine mineral particles with voids facilitating moisture vapor passage. This allows water vapor to rise from the subfloor, traverse through the tile, and evaporate at the surface. In numerous historic UK homes, quarry tiles are laid directly on lime or compacted earth bases, frequently without a damp-proof membrane, encouraging continuous and intentional moisture movement. Sealing this pathway interrupts the tile’s natural function rather than providing protection.

The Crucial Role of the Firing Process

The firing temperature of quarry tiles plays a pivotal role in determining their final density, color, and porosity. Tiles fired at lower temperatures tend to be softer and more porous, quickly absorbing liquids, a common feature in older Victorian and Edwardian homes. Conversely, tiles subjected to higher firing temperatures yield denser structures with tighter voids, enhancing resistance to liquid absorption while remaining unglazed and moisture-active. Both types fundamentally differ from glazed or polished flooring options.

This manufacturing method ensures that the color of quarry tiles is an essential part of their structure, penetrating through the clay body rather than merely coating the surface. The color cannot simply be scrubbed away like a painted finish. Over time, wear may alter the surface texture, leading to color variations as contaminants accumulate within the tile. A consistently dark floor likely hides ingrained contamination rather than reflecting its original clay color.

The Consequences of an Unglazed Surface

Glazed tiles possess a glass-like coating that repels liquids, resists stains, and simplifies cleaning by keeping dirt on the surface. Quarry tiles, however, do not have this protective layer; their open clay surface permits liquids to penetrate directly. Grease, cleaning residues, soil, and water infiltrate the tile body instead of remaining on the surface. Over time, these substances accumulate below the surface, rendering standard surface cleaning ineffective.

This explains why the typical cleaning method — applying a product, mopping, and rinsing — consistently yields subpar results on quarry tiles. Cleaning agents only target residues on the surface while deeper layers of contamination persist. A floor cleaned regularly for years can still hold decades' worth of ingrained contamination since conventional cleaning solutions do not penetrate deeply enough to eliminate it. Recognizing the need for professional deep cleaning is essential for the effective maintenance of these floors.

This quarry tile hub provides comprehensive information on the entire lifecycle of these floors, from quarry tile fundamentals to cleaning, restoration, and sealing guidelines tailored to varied conditions.

Understanding Moisture Vapor Transmission and the Risks of Obstruction

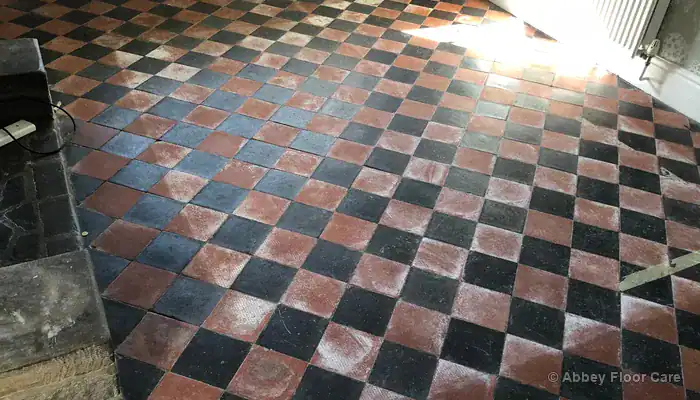

Moisture vapor transmission refers to the ongoing movement of water vapor through the subfloor, tile, and into the living area. In a properly functioning quarry tile floor, this process occurs unobtrusively without causing damage. The floor breathes effectively, maintaining stability while salts carried by moisture evaporate harmlessly at the surface or disperse through the porous clay structure.

When moisture transmission is obstructed, often because of a film-forming sealer blocking the tile's pores, moisture accumulates underneath the surface. This buildup can lead to blistering, peeling, or discoloration. Salts deposited from trapped moisture form white crystalline deposits known as efflorescence. Additional cleaning efforts cannot resolve this issue; the core problem lies in the impeded breathability, necessitating the removal of the coating to restore the tile's moisture movement.

Identifying Ingrained Contamination and Its Hidden Accumulation

Ingrained contamination consists of grease, soil, organic matter, and residues that have seeped into the clay body over years of use. Unlike recent spills, this contamination is not visible on the surface. Instead, it appears as general darkening, persistent dullness, or a floor that never seems clean despite cleaning attempts. Heavily contaminated floors may feel slightly sticky due to old wax and grease residues trapped in the upper layers of the clay body.

This accumulation occurs gradually and often goes unnoticed. Every meal prepared, every muddy shoe, and every application of general cleaning product contributes a bit of residue absorbed by the tile. Over a decade or two, this leads to a layer of contamination that cannot be removed by surface cleaning products. Addressing it necessitates specialized chemistry that penetrates the clay body, typically through controlled alkaline cleaning with wet vacuum extraction, targeting the contamination directly rather than solely treating the surface.

Why does the surface remain dirty even after cleaning?

If your quarry tile floor appears dirty after mopping, the contamination has likely infiltrated the clay body itself. At this point, traditional cleaning methods cease to yield visible results, and continuing with the same techniques will not alter the outcome. The floor isn’t unresponsive due to irreparability; it’s unresponsive because the cleaning efforts are targeting the wrong layer.

Residue cycling occurs when each cleaning session disturbs surface contamination without actually removing the embedded layer. The floor may seem cleaner immediately after mopping, but it returns to its dull state shortly after as the surface dries and the underlying layer re-emerges. This cycle can continue for years without improving the underlying condition. The deep cleaning process for quarry tiles effectively targets the embedded layer rather than repeatedly treating the surface, leading to immediate and lasting improvements.

What factors contribute to the different appearances of quarry tiles in various homes?

Repetitive cleaning that yields no visible results does not signify a failure in technique; it indicates that soil has already penetrated below the surface layer. To diagnose this issue, it is essential to understand why two quarry tile floors in similar conditions can exhibit drastically different appearances. Variations in manufacturing significantly impact both the appearance and performance of the tiles.

Quarry tiles fired at higher temperatures result in denser materials with tighter clay structures. These tiles are slower to absorb liquid, retain their color under foot traffic more consistently, and resist surface abrasion better over time. Conversely, tiles fired at lower temperatures tend to have a more open structure, absorb liquids more readily, and show signs of embedded contamination sooner. Both types remain unglazed and moisture-active, yet the speed at which problems arise varies considerably.

Why does dirt seep into the tile instead of staying on top?

Capillary action draws grease and soil into a quarry tile rather than allowing them to rest on the surface. The open clay structure facilitates the inward movement of liquid contamination under normal foot traffic. Each step applies pressure that drives liquid residues into the surface voids. Grease from cooking, soil tracked in on shoes, and residues from cleaning products all infiltrate the tile body through this process. Once inside, they become inaccessible to surface cleaning.

Over time, the voids in the upper clay layers become increasingly filled. The tile darkens from within, and residue cycling begins — each cleaning disrupts surface contamination but fails to penetrate the underlying layers. The floor becomes slower to absorb new contamination as the upper voids fill, but the existing embedded layer does not diminish without targeted intervention.

The practical implication is that cleaning frequency alone cannot compensate for insufficient cleaning depth. A floor cleaned daily with a general-purpose product may still develop a substantial embedded contamination layer over five to ten years. The maintenance routine that prevents this issue involves using correctly formulated pH-neutral cleaning solutions, avoiding detergents that leave their own residues, and removing grit before wet mopping to reduce surface abrasion and contamination issues.

Why do common cleaning agents lose their effectiveness over time?

If your regular floor cleaner was effective in the first year or two but now seems to lack impact, it’s likely that the contamination layer has migrated beyond the reach of surface-acting products. General-purpose floor cleaners are designed to address residues at or near the surface and are not formulated to penetrate the porous clay body to lift long-standing contamination. Once contamination becomes embedded, these products merely sustain surface cleanliness without resolving the underlying issues.

Many household cleaners also leave behind their own residues — surfactants, fragrances, and pH-adjusting agents that the tile absorbs along with the soil they aim to eliminate. This accelerates the residue cycling process and can result in a surface that feels slightly sticky or appears consistently dull, regardless of recent cleaning. The chemistry required to penetrate the clay body, rather than just the surface, employs controlled alkaline concentrations, mechanical agitation, and wet extraction — a process that general-purpose products are neither designed nor intended to replicate.

How can an inappropriate sealer harm your floor?

Applying a film-forming sealer on a moisture-active quarry tile floor does not provide protection; it traps the moisture that the floor needs to release. Film-forming products create a physical barrier across the tile's pores. While they may be suitable for modern glazed tiles, this approach is harmful for unglazed quarry tiles resting on a moisture-active base, leading to sealer failure, efflorescence, and accelerated deterioration.

Effectively sealing a quarry tile floor involves facilitating moisture movement rather than obstructing it.

The progression of breathability failure follows a predictable pattern. Initially, the sealer may appear effective. Within months, moisture vapor accumulating beneath the coating leads to blistering or milky patches. The coating may peel or deteriorate unevenly. Salts from trapped moisture create white crystalline patches on the surface. Homeowners often clean the floor again, frequently applying more product, exacerbating the issue. Throughout this process, the tile remains undamaged; however, restoring proper moisture vapor transmission requires professional intervention. An impregnating sealer, which penetrates the tile body instead of resting on top, allows moisture to move while protecting the internal structure from further contamination.

What signs reveal that your quarry tile floors are deteriorating?

White powder on the tile surface, inconsistent finishes that return shortly after cleaning, and coatings that peel without clear explanation are interconnected symptoms of the same underlying issue. Each indicates a specific stage of deterioration, and recognizing these signs is crucial for understanding the floor's condition.

Efflorescence, the white crystalline or powdery deposit that forms when moisture carries dissolved salts to the surface, indicates active moisture movement. This often suggests that something above — whether a surface coating or incompatible sealer — is obstructing the evaporation pathway. Homeowners notice a chalky white residue that reappears shortly after cleaning.

Salt migration produces a similar visible effect but occurs deeper within the tile, depositing mineral compounds inside the clay structure rather than on the surface. Over time, this causes the tile surface to appear progressively lighter in affected areas. Sealer failure can be recognized through peeling, mottling, or uneven sheen, signaling areas where the coating has separated from the tile.

What maintenance is essential for the longevity of a quarry tile floor?

If your quarry tile floor has undergone professional restoration, the subsequent maintenance routine will determine whether it remains in excellent condition or begins to deteriorate within months. The most crucial factor is using a pH-neutral cleaner specifically formulated for breathable natural tiles — avoiding general-purpose products and any cleaners containing bleach, vinegar, or surfactant residues that the tile will absorb. Choosing the wrong product can reactivate the residue cycling process from the outset.

It is equally important to remove grit before wet mopping. Hard particles of sand and soil tracked indoors act as fine abrasives underfoot, accelerating surface abrasion in the upper clay layer. Dry sweeping or vacuuming before any wet cleaning helps prevent this. Resealing at appropriate intervals, typically every two to three years for an impregnating sealer depending on foot traffic, maintains internal protection without causing surface residue buildup.

When does maintenance fail to adequately support your floor?

Persistent darkening that does not improve with proper cleaning products, white salts that return soon after removal, and coatings that repeatedly fail indicate that the floor requires professional evaluation rather than continued maintenance.

Use the following sequence to assess your floor's current state:

1. Clean the floor with a properly formulated pH-neutral product and allow it to dry thoroughly. If the darkening returns within 48 hours and the floor appears unchanged after cleaning, the contamination is embedded beneath the surface.
2. After removing any visible white deposits, check whether they reappear within a week. Rapid reappearance indicates active moisture movement combined with a blocked or partially obstructed evaporation pathway — this signals a sealer failure condition rather than a cleaning issue.
3. Inspect any coatings applied within the last two years. If the coating has begun to peel, mottle, or exhibit an uneven sheen in high-traffic areas, the product was likely incompatible with the floor's moisture movement profile, necessitating professional removal before further treatment.

What actions should you take based on your floor's current state?

Every issue with quarry tiles points to a specific aspect of the restoration system, and the appropriate starting point depends on the current state of the floor.

If the floor appears dirty after cleaning and the issue persists, begin with the deep cleaning process: deep cleaning quarry tiles to eliminate decades of grime outlines the complete procedure. If the floor shows white deposits, inconsistent finishes, or failing coatings, follow the restoration pathway: quarry tile restoration details the professional remediation process.
