Shed Wiring Tips for Electricians on Large Properties

If you own a shed located on acreage and feel overwhelmed by the constant struggle of dealing with extension cords from your home, it is crucial to ensure that your shed is wired correctly for optimal functionality. Whether your shed is a basic storage unit requiring just a light and a power point, or it operates as a fully equipped workshop with welders and compressors, adhering to the necessary procedures is vital. In NSW, the only legal way to achieve this is by hiring a licensed electrician who specializes in such installations.

This comprehensive guide outlines the essential steps for supplying electricity to your shed, detailing what your electrician will need for installation, and providing a tailored cost estimate specifically for the Mid North Coast region.

Maximize Your Shed's Power Supply: Comprehensive Insights on Cable Runs

The primary goal of any shed wiring project is to ensure effective power transmission from your main switchboard directly to the shed. On larger properties, this distance can extend up to 30, 50, or even over 100 metres. The greater the distance, the larger the cable diameter required to efficiently manage voltage drop and maintain consistent power delivery.

When considering cable runs, you have two primary options available to you:

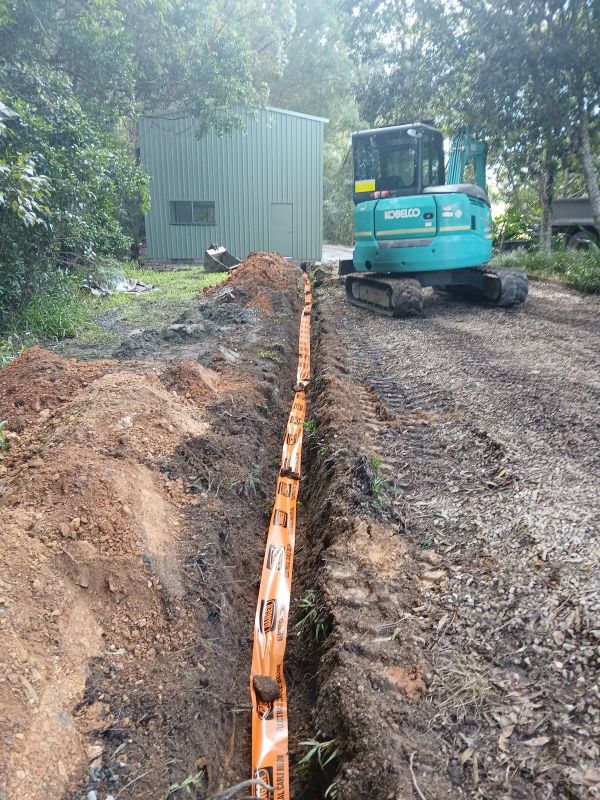

• Underground cable run — This method is the most common and visually appealing choice. Your electrician will install a heavy-duty cable within orange conduit, buried at a minimum depth of 500mm, or deeper if heavy vehicles frequently traverse the area. This approach safeguards the cable from adverse weather, wildlife interactions, and falling branches, making it the preferred solution for most properties with extensive acreage.
• Overhead cable run — Though less commonly used, this option may be necessary if the ground is solid rock or if the terrain poses challenges for trenching. Overhead runs must adhere to specified clearance heights and require support poles, significantly increasing overall costs.

For the majority of properties located in and around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is typically the recommended method. Your electrician in Bellingen can evaluate your site and suggest the most effective installation route based on your specific needs.

Establishing a Dependable Power Supply for Your Shed: Importance of a Dedicated Sub-Board

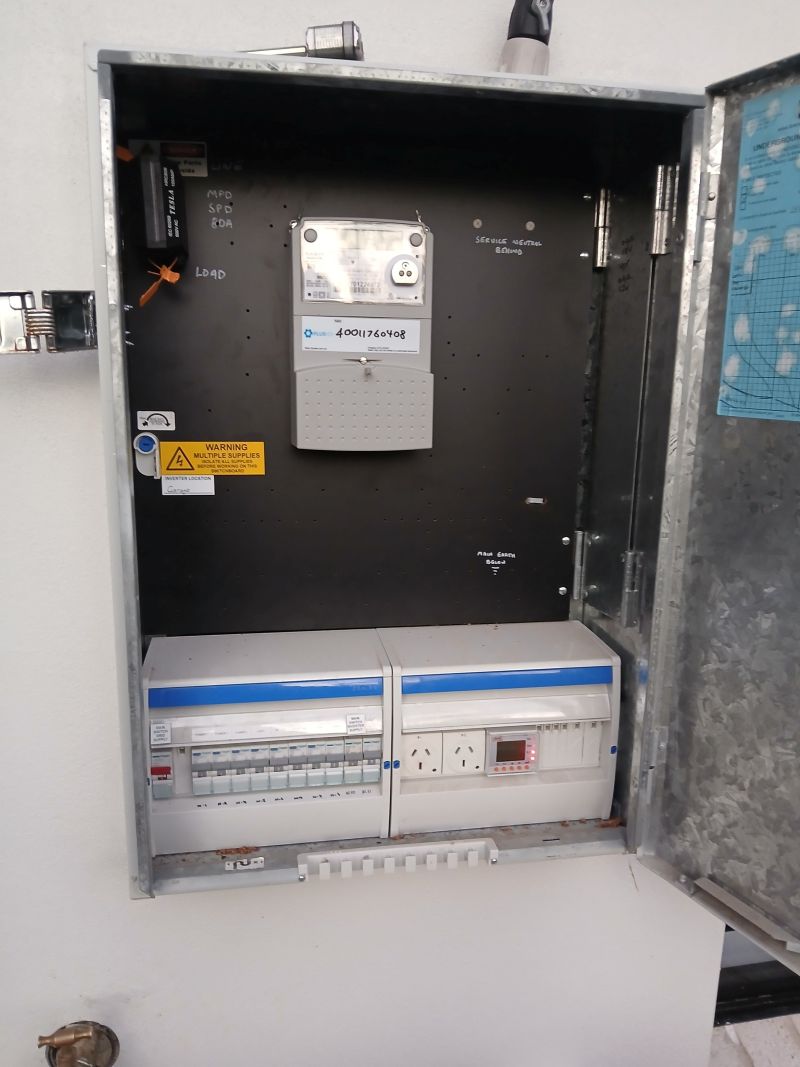

Simply running a single cable to the shed and plugging in electrical appliances is inadequate for ensuring a reliable power supply. Any shed that receives a consistent power supply must be equipped with a dedicated sub-board, often referred to as a distribution board. This essential component functions as a mini switchboard located within the shed, facilitating effective management of all circuits.

Your sub-board will typically consist of the following critical components:

• Main switch — This feature allows you to isolate all power to the shed independently from the main house, significantly enhancing safety and control during maintenance or emergencies.
• RCDs (Residual Current Devices) — Required by NSW electrical regulations, these devices provide rapid power cut-off within milliseconds during a fault, which is essential for safety in environments where moisture, dust, and damaged leads are common.
• Circuit breakers — These devices offer individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits to prevent overload.

If your house's switchboard is older, your electrician may also recommend upgrading it to accommodate the increased load directed towards the shed for optimal performance.

What Must Be Installed Inside Your Shed for Optimal Functionality?

The specific installations your electrician performs inside the shed will depend entirely on its intended use and purpose. Here’s a detailed overview of typical setups based on different functionalities.

Creating an Efficient Basic Storage Shed: Essential Considerations

If your shed primarily serves as a storage space for tools, a ride-on mower, or other equipment, consider implementing the following setup to maximize efficiency:

• LED batten lights — One or two ceiling-mounted LED batten lights will effectively illuminate the entire area. Your electrician can provide professional guidance on the optimal lighting arrangement based on the shed's dimensions, layout, and purpose.
• Two to four general power points — These outlets will suffice for plugging in a charger, a radio, or a drop saw as needed. Expect standard power points and switches to operate on a single circuit for simplicity.
• External light — A weatherproof LED light installed above the door ensures visibility and helps you avoid fumbling around in the dark when entering or exiting.

Configuring a Fully Equipped Powered Workshop Shed: Advanced Wiring Needs

If you frequently utilize power tools like drop saws, bench grinders, and dust extractors, a more advanced wiring configuration is essential to support these tools:

• Multiple circuits — Separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights whenever a tool is activated, ensuring consistent performance and reliability during operation.
• Higher-rated power points — Installing 15-amp or 20-amp outlets is crucial for accommodating heavier tools, enhancing the overall functionality and efficiency of the shed.

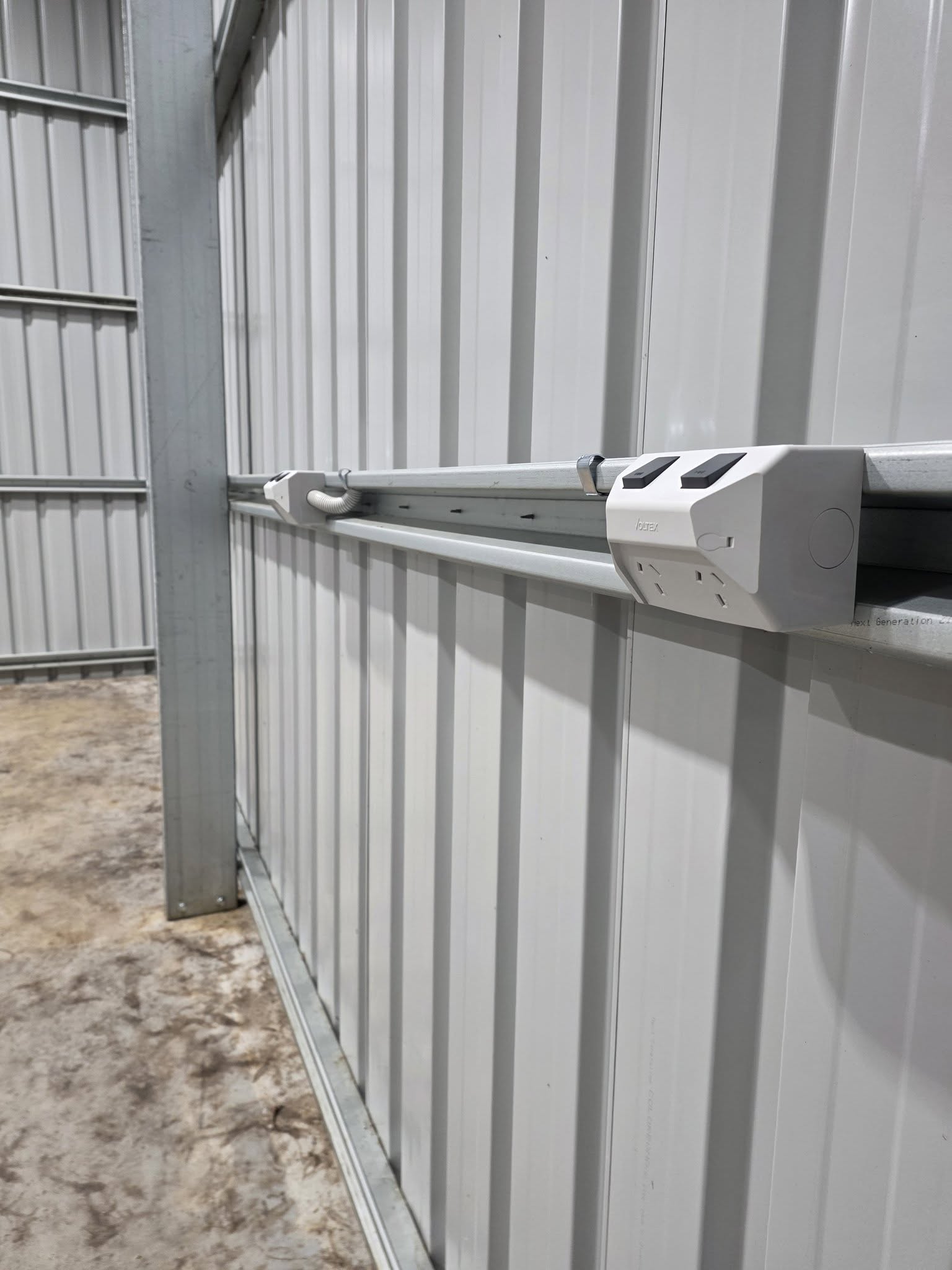

• Strategically placed additional power points — Position outlets at bench height instead of only at skirting level to consider the actual locations of your workbenches for optimum accessibility and convenience.
• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas, possibly using LED high-bays for larger sheds to improve visibility and reduce eye strain.

For detailed guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which provides in-depth information on this topic.

Establishing a Comprehensive Workshop with Three-Phase Power Supply: What You Need to Know

If you plan to operate heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying on single-phase power may not be adequate. In such scenarios, considering three-phase power is advisable for consistent performance.

Three-phase power delivers more stable and higher-capacity energy. To implement this, your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which can take several weeks on the Mid North Coast depending on availability and regulations.
• Install a three-phase sub-board in the shed, equipped with suitable breakers and RCDs to ensure safety and compliance with electrical standards.
• Run heavier cabling — Keep in mind that three-phase cable runs are generally more expensive, especially over long distances, due to the increased material and installation costs.
• Install three-phase outlets — These industrial-grade sockets must be appropriately rated for the equipment being utilized, ensuring safe and efficient operation without risk of overload.

If you are uncertain whether three-phase power is necessary for your specific requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on the benefits of three-phase power and when a well-designed single-phase setup will suffice. We also provide complete installations for three-phase switchboards should you choose that route for your workshop.

Why Is Surge Protection Crucial for Enhancing Your Shed's Safety?

Properties located on acreage in the Mid North Coast frequently experience severe lightning storms. A direct or nearby lightning strike can cause extensive damage to everything housed within your shed, jeopardizing valuable tools, chargers, refrigerators, and all equipment connected to power sources.

Installing a high-quality surge protection device within the sub-board acts as affordable insurance against these risks. This device absorbs voltage spikes before they can reach your valuable equipment, preventing potential damage. For sheds housing expensive tools or a workshop setup, surge protection is an essential investment to avoid costly repairs or replacements.

If your property uses a generator for backup power, your electrician can also install a generator changeover switch, allowing the shed (and your house) to switch to generator power safely during outages or emergencies.

What Are the Key Regulations Regarding Council Approval and Compliance in NSW?

There are several crucial regulations to be aware of when wiring your shed:

• All electrical work in NSW must be executed by a licensed electrician. This rule is non-negotiable. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be performed by a licensed contractor who will provide a Certificate of Compliance (CCEW) upon completion.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will manage this aspect of the installation efficiently and in accordance with all relevant regulations.
• If the shed is a new construction, development approval may be required depending on your council and the shed's dimensions. While the electrical work itself does not necessitate a separate permit, the overall building project might require it, so it's essential to check with local authorities.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality.

Estimating Costs for Shed Wiring on Acreage: What You Should Expect

Every shed presents unique challenges—distance from the house, whether you need single-phase or three-phase power, the number of circuits required, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast area:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500, this option covers essential needs for a simple setup.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, providing enhanced functionality for more demanding applications and tool usage.
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+, catering to those with extensive power requirements and specialized equipment.

Longer cable runs (50m+) or rocky terrain necessitating a rock saw, along with upgrades for three-phase supply, will all increase the total cost. The most reliable way to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed to provide a customized quote.

For a personalized quote tailored to your specific setup, please call us at 0402 079 803 or contact us here for further assistance.

Addressing Your Most Common Questions About Shed Wiring

Can I Wire My Shed Myself In NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other related tasks. Attempting DIY electrical work is not only illegal but also poses significant safety risks, potentially leading to fires or electrical hazards. Your electrician will provide a Certificate of Compliance upon completing the work, ensuring it meets all regulatory standards and safety protocols.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth must typically be increased to 600mm or more for added protection. Your electrician will assess your property and determine the appropriate depth for your specific situation, ensuring compliance with all applicable regulations.

Do I Need A Separate Meter For My Shed?

In most circumstances, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only required if the shed is utilized as a distinct dwelling or commercial premises, which will necessitate further discussions with your council and energy distributor to ensure compliance with local regulations.

How Long Does It Take To Wire A Shed On Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—usually takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Keep in mind that three-phase installations often take longer, as the supply connection must first be arranged with the distributor to ensure compliance and proper functioning.

Can I Run Power From The Shed To Other Buildings?

Yes, it is possible to run power from the shed to other buildings, but each additional structure will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset. This proactive approach helps avoid complications and potential safety issues associated with future additions.

Ensure Safe and Efficient Wiring for Your Shed with Professional Assistance

If you live on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is dedicated to ensuring your shed is wired correctly—whether it’s a straightforward light-and-power setup or an extensive three-phase workshop tailored to your specific needs.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote personalized to your specific requirements.
